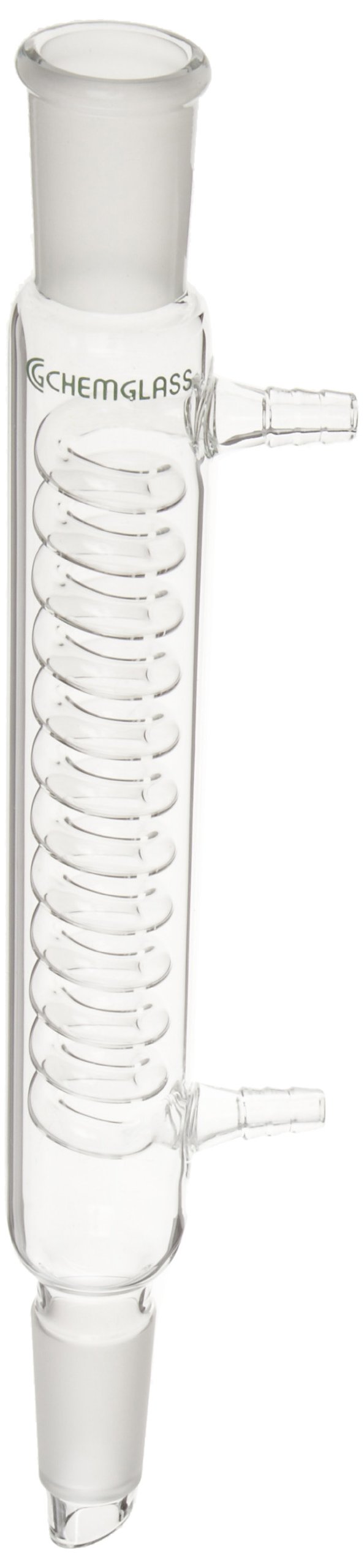

CG-1216-01 Glass Reflux Coil Condenser - 200mm Jacket Length, 315mm Overall Length with 24/40 Joint for Chemistry Lab Distillation & Essential Oil Extraction

The Chemglass CG-1216-01 borosilicate glass reflux coil condenser is used for distillation applications and has a coil-formed inner tube to circulate coolant and increase the surface area for cooling the condensed liquid for high-speed condensing. The condenser has standard taper 24/40 top outer and lower inner drip tip joints. Hose connections have an OD of 10mm at the middle serration. A reflux coil condenser condenses the liquid by circulating coolant through the condenser coil, while a Graham condenser circulates coolant through the condenser jacket. The condenser has a 200mm jacket length and a 315mm overall length.Chemglass manufactures laboratory glassware and equipment. The company, founded in 1946, is headquartered in Vineland, NJ.

Reflux coil condenser used for distillation applications has coil-formed inner tube to circulate coolant and increase the surface area for cooling the condensed liquid for high-speed condensing

Borosilicate glass for clarity, strength, and heat- and chemical-resistance

Inlet and outlet tubes are on the same sides of the tube

Standard taper 24/40 top outer and lower inner drip joints, and 10mm OD barbed hose connection at middle serration

200mm jacket length, 315mm overall length
